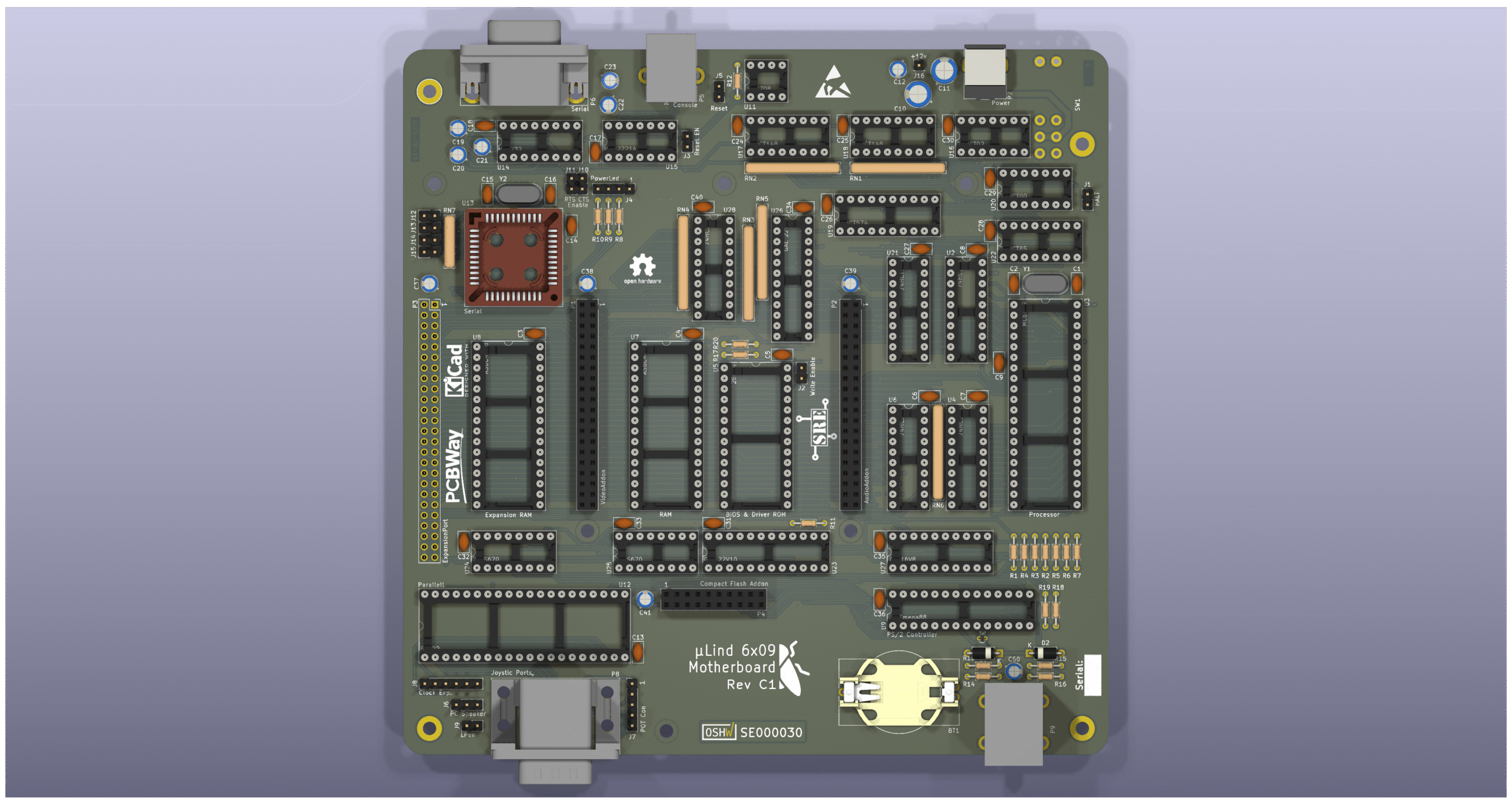

The Final Form!
At last we can unleash the full potential of this board, all features we planned and then some is implemented in this revision. From the stage 2 we have added:
- Irq Handler, with 15 usable prioritized interrupts
- PS/2 keyboard and mouse interface
- CF interface header (There was not room for the socket on the board)
- “PC Speaker”, for the real retro feeling
The board is routed with all updates we have found so far, and will be updated during testing of stage 2.
